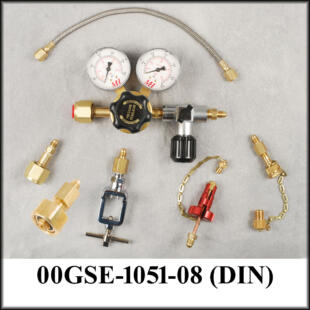

You asked for it and we made it. Many of our European Fixed Base Operators (FBOs) requested a complete DIN FBO oxygen filling system with regulator, so we here at Mountain High put together a complete DIN FBO oxygen system with everything you need.
Starting with the regulator.
We found this quality high-pressure oxygen regulator.
The standard kit comes with a non-venting style regulator.
A vented-style regulator is available upon request at no extra charge.
Together with that we have combined our time-proven components.
Each FBO kit comes with the five most common fill adapters that you will need.
Combine that with a hose length of your choice and you are in business.
Many of our customers have asked to take the bulk away from the aircraft or fill end.
We have moved the bleed valve up near the regulator, so now the supply end has far less weight.
However, we can configure your system with the bleed valve at the fill end if you prefer.
We have also gone to a smaller-diameter braided hose to reduce weight and facilitate ease of handling.
Our system also incorporates a flow restrictor to prevent filling too fast, as well as built-in filters.
All components are cleaned and ready for oxygen use.
For use with DIN 477-9 oxygen fitting. Kit includes 5 popular fill adapters.
(1) 00GSE-1035-00, (1) 00GSE-1039-00, (1) 00GSE-1043-02, (1) 00GSE-1045-00, (1) 00GSE-1046-00
