For experimental aircraft owners, this Altus Meso is provided with 5V power, ground, and analog output wires exposed for permanent installation. With this option, the Meso is always on and can be output directly to your G3x, Dynon, and Advanced Flight Systems avionics without requiring the EX 3.0 CO detector.
The Altus Meso is the second-generation Altus smart-tank monitor from Aithre with all the same innovative functionality now packaged in a miniature form factor. Altus Meso wirelessly pairs to your iOS device and Apple watch to display pressure, flow rate, and time remaining, including oxygen-trend graphing and much more, using 5V ship power for experimental aircraft. This small device makes your oxygen tank more usable and accessible.

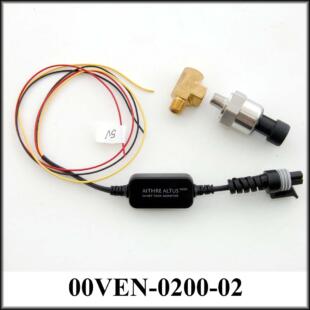

Includes high-pressure quick-disconnect sensor, high-pressure-rated t-fitting expansion for 1/8″ NPT-size ports (typical on all oxygen tanks), exposed 5V, ground, and analog output wire, and iOS/WatchOS app downloadable from the Apple App Store.
Installation is easy. Just empty your tank and insert the supplied sensor fitting between your tank and the old pressure gauge. The 5V power, ground, and analog output wires can be hooked up directly to your GSx GEA24, Dynon SV-EMS, or Advanced Flight Systems avionics. No on/off switch and no manual pairing required. The tank pressure will be automatically shown on the graphical gauge in the iOS/WatchOS app and on your Dynon or G3X when properly configured.
